Trillium House
Trillium House is a 42 unit affordable family housing project on the rural Oregon Coast, in the city of Warrenton. It is new model for multi-family housing in rural areas: higher quality, more accessible, more secure, and more sustainable. Trillium employs Walsh Construction’s Cost-Efficient Design and Construction (CEDC) that optimizes structural framing, efficient building plans (net to gross area >80%), efficient dwelling unit plans (narrow “aspect ratio”), compact plumbing layouts, standardized & repeated typical elements, and maximized prefabrication to reduce project cost and construction time. Trillium was constructed in 11 months, down from a usual 14 months for a comparable project.
Trillium's efficiencies influenced the design of the Emmons ImHomeToo modular standardized multi-family dwelling units.

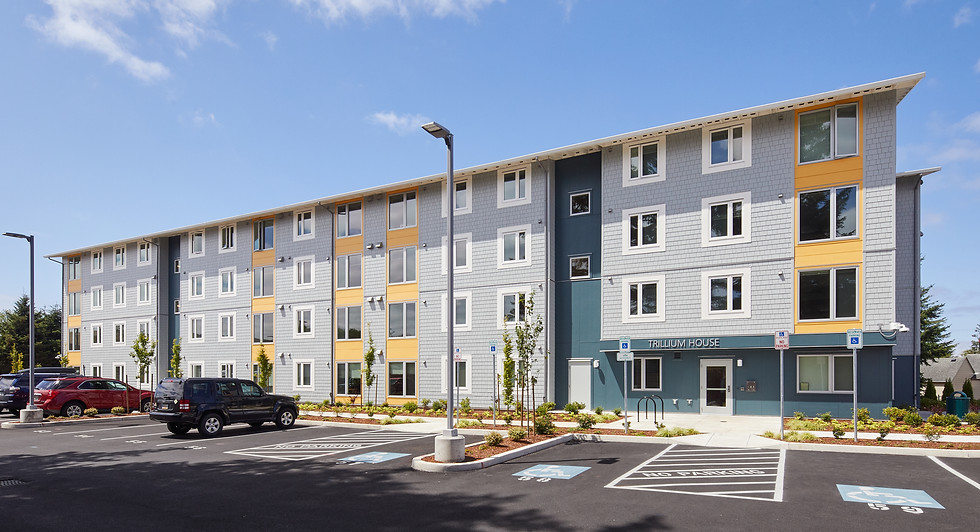

Exterior
Street view
The Community Garden

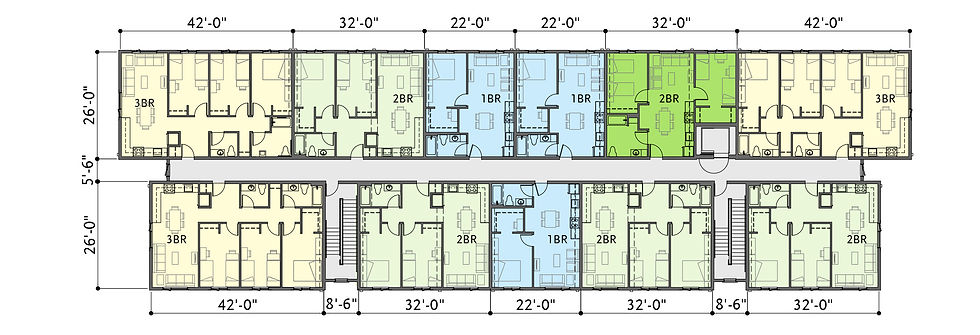

Floor Plans
A combination of 1, 2 and 3 Bedroom units per floor. The CEDC system allows for many floor plan configurations.
Diagrams
CEDC system uses a 2 foot grid to reduce cost through panelized construction, reduced material waste, and
Below are the efficiency diagrams for the 1 Bedroom unit. 2 Bedroom units add 10 ft, 3 Bedroom units add 20 ft.
2 ft grid layout
Wall framing
Joist layout
Panel layout
